434 HIGH-PRESSURE MOTOR INJECTION
434 HIGH-PRESSURE MOTOR INJECTION

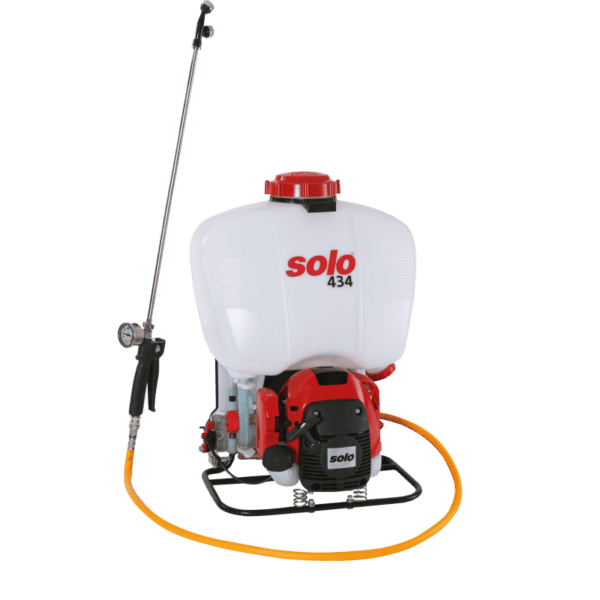

The SOLO high-pressure syringe 434 achieves a powerful performance with its powerful 2-stroke engine the adjustable working pressure of the twin-piston pump reaches up to 20 bar , producing the finest spray mist at the same time with a maximum reach at a dispensing volume of up to 1.9 l / min. With 18 liters of nominal volume , long working phases are possible without refilling. A practical drainage at the bottom of the container allows complete emptying of the residual liquid. The SOLO 434 has a 50 cm long stainless steel spray tube and a manometer on the rugged hand valve for the appropriate pressure control. Also included is a high-quality double nozzle with nozzle discs made of stainless steel.
Specifications
| Nominal volume liters | 18 |
| empty weight kg | 9.3 |
| Sound pressure level dB (A) | 92.4 |
| Sound power level guaranteed dB (A) | 99.2 |
| Vibration value m / s² | ≤ 2.0 |
| Engine | SOLO 2-T |
| Displacement cm³ | 28.9 |
| Stainless steel double nozzle | ✓ |
| Adjustable by max. bar | until 20 |
| Delivery rate l / min with standard nozzle | 1.0 l at 5 bar ➡ 1.4 l at 10 bar ➡ 1.9 l at 20 bar |
